model

Q-BOX(D525)

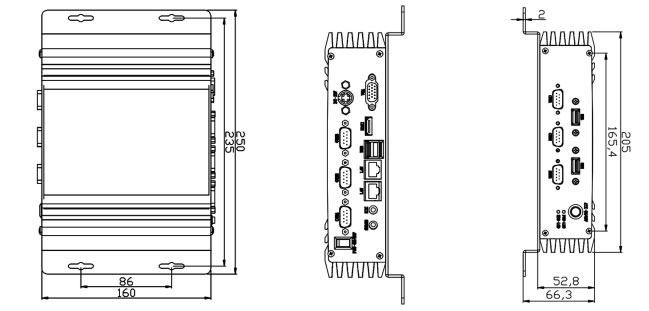

size

205*160*66mm

processor

Intel Atom Processor D525CPU

chipset

ICH8

RAM

Onboard 2GB or 4GB DDDR3 memory

Expansion slot

1*Mini PCI-E slot

Network card

1*Realetk RTL8111EL Gigabit LAN

Audio

Realetk ALC662 6-channel HD audio core provides 1*Mic_in, 1*Line_out

Storage device

1*2.5′′ SATA hard drive, 1*M-SATA SSD interface

colour

black

Panel interface

2*USB、3*COM

Backplane interface

1*VGA、4 or2*USB、1or2*LAN、1*Mic_in、1*Line_out、3*COM、1*DC_IN

Standard

1*12V5A60W power adapter, 1*CD

package

Packing box size: 280*215*123mm
Gross weight: 2.1kg (including power supply), 1.75kg (excluding power supply)
Net weight: 1.5kg

model

Description

CPU optional

QBOX-N550

2GB DDR3 memory

2.5"320G/500G/1T notebook mechanical hard drive

16G/32G/64G/128G Solid State Drive

?N550 (1.5GHz, 8.5w power consumption)

?N570(1.66GHz, 8.5w power consumption)

?Dual-core four-threaded

QBOX-N450

?2GB DDR3 memory

2.5"320G/500G/1T notebook mechanical hard drive

16G/32G/64G/128G Solid State Drive

N450 (1.66GHz, 5.5w power consumption)

N455 (1.66GHz, 6.5w power consumption)

single-core dual-threaded

QBOX-D525

2GB DDR3 memory

16G/32G/64G/128G Solid State Drive

D525 (1.8GHz, 13w power consumption )

dual-core four-threaded

1*host

1*Power Adapter

1*User's Guide

product name

Specifications

Power Adapter

??12V5A four cores

Notebook Hard Drive

320G/500G/1T

SSD hard drive

8G/16G/32G/64G/128G

WIFI module

short card/long card

3G module

short card/long card
